The SMT PCB board has revolutionized electronics manufacturing by enabling the creation of compact and high-performance products. Surface mount technology (SMT) allows components to be mounted directly onto the surface of a PCB, eliminating the need for bulky through-hole designs. This innovation increases component density, supports multi-layered PCB designs, and enhances production efficiency. Devices like smartphones and IoT gadgets benefit from SMT’s precision, integrating numerous functions into smaller spaces. By reducing manual soldering, SMT minimizes errors and improves the reliability of electronic products, making it a cornerstone of modern electronics manufacturing.

Key Takeaways

• SMT PCB technology helps create small and efficient designs. It is perfect for modern gadgets like smartphones and IoT devices.
• The SMT process makes production faster by using machines. These machines can quickly place thousands of tiny parts.
• SMT improves how electronics work by lowering interference. It also makes signals clearer, which is important for fast devices.
• Even with its benefits, SMT can be hard for testing. Working with tiny parts needs special tools and skills.
• Industries like electronics, cars, and medical tools use SMT. It helps make strong and high-quality products.

What is SMT PCB Board?

Definition and Overview of SMT PCB

An SMT PCB board, or Surface Mount Technology Printed Circuit Board, represents a modern approach to pcb manufacturing. Unlike traditional methods, SMT allows components to be mounted directly onto the surface of the board. This eliminates the need for drilling holes, making the process faster and more efficient. SMT PCBs are known for their compact designs, as the components used are smaller and lighter. This enables high-density assembly, allowing you to create devices with more functionality in less space. Additionally, SMT enhances electrical performance by reducing parasitic effects, thanks to shorter electrical paths. These characteristics make SMT PCBs ideal for modern electronics, where size, efficiency, and performance are critical.

Principles of Surface Mount Technology

Surface mount technology operates on a straightforward principle: components are soldered directly onto the surface of the pcb. This method contrasts with through-hole technology, where components are inserted into drilled holes. SMT relies on surface mounted devices, which are smaller and lighter than their through-hole counterparts. This enables the creation of high-density circuit boards. The process involves several key steps, including solder paste application, precise placement of smd components, and reflow soldering. SMT also improves electrical performance by ensuring better signal integrity and reliability. Its compatibility with automated manufacturing processes further reduces costs and speeds up production.

Key Components in SMT Assembly

SMT assembly uses a variety of surface mounted devices, each designed for specific functions. Common smd components include Integrated Circuits (ICs) such as Small Outline Integrated Circuit (SOIC), Thin Small Outline Package (TSOP), and Quad Flat Pack (QFN). Other components like Plastic Leaded Chip Carrier (PLCC) and Lead-less Chip Carrier (LCC) are also widely used. These components differ from through-hole components in several ways. They are mounted directly on the pcb surface, allowing for higher component density. SMT components also offer better high-frequency performance due to shorter lead lengths. The use of reflow soldering in SMT ensures a reliable and efficient assembly process, making it a preferred choice in modern pcb manufacturing.

SMT vs. Traditional Through-Hole Technology

Overview of Through-Hole Technology

Through-hole technology (THT) has been a cornerstone of electronics manufacturing for decades. It involves inserting component leads into pre-drilled holes on a printed circuit board (PCB) and soldering them in place. This method creates strong mechanical bonds, making it ideal for applications requiring durability and reliability. THT is commonly used for large components like transformers, heat sinks, and connectors that need additional mechanical support. While it remains effective for certain use cases, its labor-intensive nature and slower assembly process limit its efficiency in modern, high-volume production environments.

Advantages of SMT Over Through-Hole

Surface mount technology (SMT) offers several key advantages over THT, making it the preferred choice for modern electronics manufacturing.

• Higher Efficiency: SMT enables full automation of the assembly process. Machines can place over 136,000 components per hour, significantly boosting production efficiency.
• Compact Design: SMT supports higher component density and allows components to be mounted on both sides of the PCB. This capability is essential for creating smaller, more complex devices.
• Improved Performance: SMT components have lower resistance and inductance at connections, enhancing high-frequency performance. They also perform better under shock and vibration due to their lighter mass.
• Cost-Effectiveness: SMT reduces operational costs by minimizing manual labor and eliminating the need for drilling holes. Additionally, SMT components are generally less expensive than their through-hole counterparts.

These advantages highlight why SMT has become the standard for producing high-performance, compact, and cost-effective electronic devices.

Situations Where Through-Hole Technology is Still Relevant

Despite the key advantages of SMT, through-hole technology remains relevant in specific scenarios. You’ll find THT used in industries like aerospace, military, and industrial machinery, where robustness and durability are critical. Its strong mechanical bonds make it ideal for high-power electronics, large connectors, and bulky components requiring mechanical support. THT is also preferred for manual assembly and prototyping, especially among hobbyists and small-scale manufacturers. These applications demonstrate that while SMT dominates modern manufacturing, THT still plays a vital role in specialized contexts.

SMT Manufacturing Process

PCB Design and Preparation

The first step in the SMT manufacturing process involves designing and preparing the printed circuit board. This stage ensures that the PCB is ready for efficient assembly. Here’s how the process unfolds:

1. Material Preparation and Examination: You start by preparing the PCB and surface-mounted components (SMCs). Inspect the PCB for flaws, ensuring it has flat solder pads without holes.
2. Stencil Preparation: A stencil is created based on the solder pad positions. This stencil will guide the application of solder paste.
3. Solder Paste Printing: Using the stencil, solder paste is applied to the PCB with a squeegee. This step ensures precise paste placement on the solder pads.
4. SMC Placement: Components are placed on the PCB using automated pick-and-place machines.
5. Reflow Soldering: The PCB passes through a reflow oven, where heat bonds the components to the solder pads.
6. Cleaning and Inspection: Finally, the board is cleaned and inspected for defects. Any necessary rework is performed at this stage.

This structured approach ensures that the PCB assembly process begins with a solid foundation, minimizing errors in subsequent steps.

Solder Paste Application

Solder paste application is a critical step in SMT manufacturing. The solder paste, a mixture of metal solder balls and flux, serves as both an adhesive for components and the material for solder joints during reflow. There are several methods for applying solder paste:

Screen printing is the most common method, as it balances precision and cost-effectiveness. Accurate solder paste application is essential for successful component placement and reliable solder joints.

Component Placement

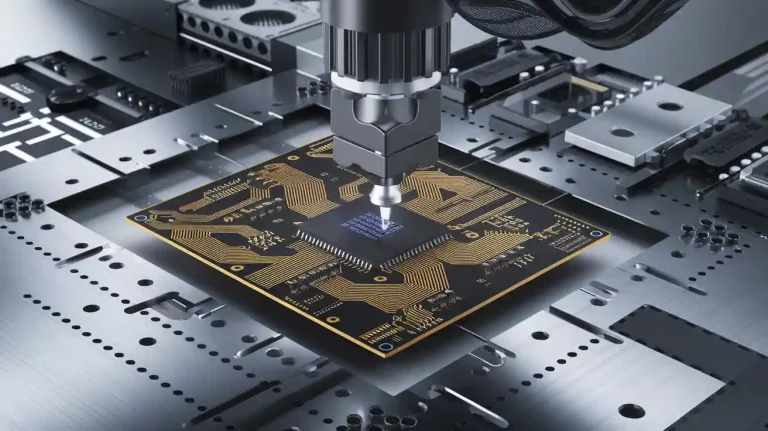

Component placement is where the SMT process truly comes to life. Automated systems, such as pick-and-place machines, ensure precise placement of components on the PCB. These machines can handle thousands of components per hour, significantly boosting production efficiency.

To achieve accuracy, stencil printers apply solder paste precisely, creating a strong foundation for component placement. Automated Optical Inspection (AOI) systems then verify that components are correctly positioned by comparing them to stored standards. This combination of advanced technologies ensures that the PCB assembly process remains efficient and error-free.

By leveraging automation, you can achieve high precision and consistency in component placement, which is crucial for modern PCB manufacturing.

Reflow Soldering

Reflow soldering is a critical step in the SMT process, where solder paste is melted to create strong electrical and mechanical bonds between components and the PCB. This process involves four distinct stages, each with specific temperature profiles to ensure optimal results:

1. Preheat Zone: The PCB assembly is gradually heated to a target soak temperature. This step ensures consistent heating and removes solvents from the solder paste.
2. Thermal Soak Zone: The assembly is held at a steady temperature for 60 to 120 seconds. This stage activates fluxes and achieves thermal equilibrium, preparing the solder paste for reflow.
3. Reflow Zone: The temperature peaks between 235°C and 250°C, melting the solder paste. This step forms strong solder joints, ensuring reliable connections.
4. Cooling Zone: The assembly is cooled at a controlled rate of 4°C per second. This prevents thermal shock and solidifies the solder joints.

Maintaining precise temperature profiles during each stage is essential. A maximum allowable slope rate during preheating prevents damage to sensitive components. Similarly, the peak temperature and duration in the reflow zone directly impact the quality of solder joints. By carefully controlling these parameters, you can achieve consistent and reliable results in PCB manufacturing.

Inspection and Quality Control

Inspection and quality control are vital in SMT to ensure the reliability and performance of the final product. Several techniques are commonly used to identify defects and maintain high standards:

1. Visual Inspection: This manual method allows you to examine PCBs and components for visible defects.
2. Automated Optical Inspection (AOI): Cameras and image processing systems detect issues such as misaligned components or soldering defects.
3. X-ray Inspection: This technique inspects hidden solder joints and internal structures, especially in high-density PCBs.
4. In-Circuit Testing (ICT): Electrical tests verify the functionality of individual components and connections.
5. Functional Testing: The final product undergoes real-world performance tests to ensure it meets design specifications.

Throughout the SMT process, inspections occur at multiple stages. For example, checks during solder paste application and component placement help identify potential issues early. Final inspections ensure that only defect-free products move forward in the manufacturing process. By implementing these techniques, you can maintain the quality and reliability of your PCB manufacturing operations.

Challenges and Limitations of SMT

Handling Miniaturized Components

As electronic devices become smaller, the demand for miniaturization in SMT manufacturing grows. However, handling miniaturized components presents unique challenges:

• The assembly process becomes more complex as component sizes shrink. Extremely small components, such as 008004 packages, are difficult to handle and rework, which can reduce production yield.
• Inspection of these tiny components requires advanced techniques like Automated Optical Inspection (AOI) and X-ray systems. These tools ensure accuracy but add to the overall cost and complexity of the process.
• Specialized equipment is essential for managing miniaturized components effectively. Without it, maintaining precision and quality becomes nearly impossible.

While miniaturization capabilities allow for compact and efficient devices, they also demand a higher level of expertise and investment in advanced tools.

Equipment Costs and Setup Requirements

The initial investment in SMT equipment can be significant, especially when compared to traditional through-hole technology. The following table highlights the key cost factors:

Although SMT reduces manual labor and supports automation, the cost of acquiring and maintaining advanced equipment remains a barrier for smaller manufacturers. Balancing these costs with production needs is crucial for optimizing efficiency.

Complexity of Repair and Rework

Repairing and reworking SMT components is more challenging than through-hole technology due to their small size and delicate nature. You may encounter the following difficulties:

• SMT components require precise handling with tools like tweezers, as they lack the mechanical stability of through-hole components.
• During soldering, components can easily shift, increasing the risk of damaging adjacent parts. This makes manual soldering more prone to errors, such as solder bridges.
• Specialized equipment, such as hot air rework stations and microscopes, is often necessary for repairs. These tools increase both the time and cost of rework.

The close proximity of SMT components further complicates repair processes. Ensuring proper rework without compromising the integrity of nearby components requires significant expertise and precision.

Applications of SMT in Modern Electronics

Consumer Electronics

SMT has transformed the consumer electronics industry by enabling the creation of smaller, lighter, and more powerful devices. You can see its impact in products like smartphones, tablets, laptops, and wearable technology. By allowing high-density component placement, SMT helps manufacturers integrate numerous functions into compact designs. This not only enhances the functionality of these devices but also improves their aesthetic appeal.

• Smartphones and Tablets: SMT enables compact designs with improved battery life and enhanced processing power.
• Laptops and Computers: Thinner and lighter builds with better heat dissipation are possible due to SMT.
• Wearable Technology: Devices like smartwatches and fitness trackers benefit from SMT’s ability to support miniaturized components.

With SMT, consumer electronics have become more reliable and efficient, meeting the growing demand for portable and high-performance electronic products.

Automotive Electronics

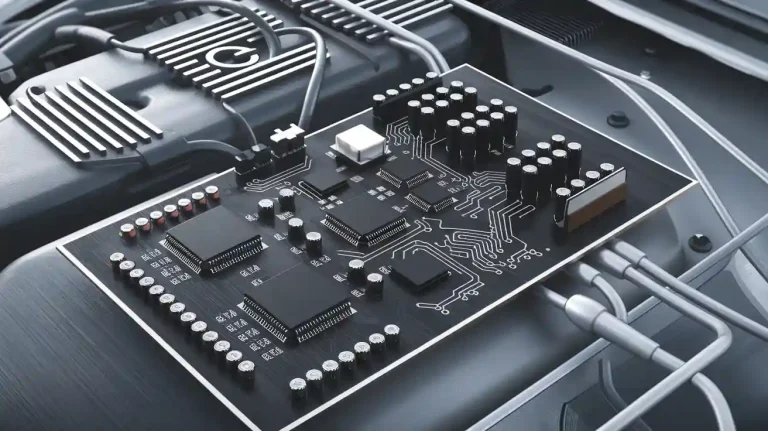

In the automotive industry, SMT plays a crucial role in ensuring the reliability and precision of electronic systems. You’ll find SMT in vehicle control units, sensors, actuators, and entertainment systems. Its ability to mount tiny components accurately on PCBs ensures stable operation and high performance.

• Sensors and Actuators: SMT enhances sensitivity and accuracy, making it ideal for environmental parameter sensing.
• Vehicle Control Systems: SMT ensures stable operation by supporting high-precision placement of components.
• Safety Assistance Systems: Critical safety features rely on SMT for precision and reliability.
• Car Entertainment Systems: SMT enables quick and accurate mounting of components, resulting in high-quality audio and visuals.

By leveraging SMT, automotive electronics achieve the durability and efficiency required for modern vehicles.

Medical Devices

In the medical field, SMT is indispensable for creating miniaturized and reliable devices. You’ll find it in pacemakers, defibrillators, hearing aids, and diagnostic equipment. Miniaturization is critical for implantable devices, while reliability is essential for all medical applications. SMT ensures that these devices meet stringent manufacturing standards.

• Implantable Devices: SMT PCBs are vital for pacemakers, cochlear implants, neurostimulators, and insulin pumps.
• Diagnostic Equipment: SMT supports the development of compact and precise diagnostic tools.

With SMT, medical devices achieve the precision and reliability necessary to improve patient outcomes.

Telecommunications and IoT

The telecommunications and IoT industries rely heavily on SMT to meet the growing demand for faster, smarter, and more connected devices. You’ll notice that SMT plays a pivotal role in enabling the compact and efficient designs required for modern communication systems and IoT devices.

In telecommunications, SMT supports the development of high-frequency components like antennas, filters, and amplifiers. These components are essential for devices such as smartphones, routers, and base stations. SMT allows you to achieve high-density circuit designs, which improve signal integrity and reduce interference. This ensures that communication systems operate reliably, even in high-demand environments.

For IoT, SMT enables the creation of miniaturized devices with advanced functionality. Smart home devices, wearable technology, and industrial IoT sensors all benefit from SMT’s ability to integrate multiple components into a small footprint. For example, SMT allows you to combine microcontrollers, sensors, and wireless communication modules on a single PCB. This integration reduces power consumption and enhances the performance of IoT devices.

The automation capabilities of SMT also make it ideal for mass-producing telecommunications and IoT products. Automated pick-and-place machines ensure precise component placement, while reflow soldering creates strong and reliable connections. This level of precision is critical for devices that require consistent performance over long periods.

By leveraging SMT, you can create telecommunications and IoT devices that are not only compact but also highly efficient and reliable. This technology continues to drive innovation in these industries, enabling the seamless connectivity that modern life demands.

The SMT PCB board has transformed electronics manufacturing, becoming the backbone of modern electronic products. Its ability to support miniaturization, improve production efficiency, and enhance electrical performance has revolutionized how devices are designed and produced. The following table summarizes its key benefits:

Looking ahead, the future of SMT holds exciting possibilities. Emerging trends include advanced soldering techniques for greater precision, AI-driven quality control, and the rise of flexible and wearable electronics. Innovations like 3D printing and miniaturized components will further enhance the efficiency and customization of electronic products. These advancements will ensure that surface mount technology continues to drive progress in the electronics industry.

FAQ

What is the main advantage of SMT over traditional through-hole technology?

SMT allows you to create compact, lightweight, and high-performance devices. It supports automated assembly, which increases production speed and reduces costs. Additionally, SMT improves electrical performance by minimizing interference and enhancing signal integrity, making it ideal for modern electronics.

Can SMT handle high-power components?

While SMT excels in compact designs, it struggles with high-power components requiring strong mechanical support. For such cases, through-hole technology remains more suitable. However, advancements in SMT are gradually addressing these limitations, enabling its use in more power-intensive applications.

How do you ensure quality in SMT manufacturing?

You can ensure quality by using inspection techniques like Automated Optical Inspection (AOI), X-ray inspection, and functional testing. These methods help detect defects early and maintain high standards throughout the manufacturing process. Regular equipment calibration also ensures consistent results.

Is SMT suitable for prototyping?

SMT can be challenging for prototyping due to its reliance on automated equipment and miniaturized components. However, with the right tools and expertise, you can use SMT for small-scale production or prototyping, especially when designing compact and high-performance devices.

What industries benefit the most from SMT?

Industries like consumer electronics, automotive, medical devices, and telecommunications benefit significantly from SMT. It enables the creation of compact, reliable, and efficient products, meeting the demands of modern technology. For example, smartphones, IoT devices, and automotive sensors rely heavily on SMT for their functionality.
